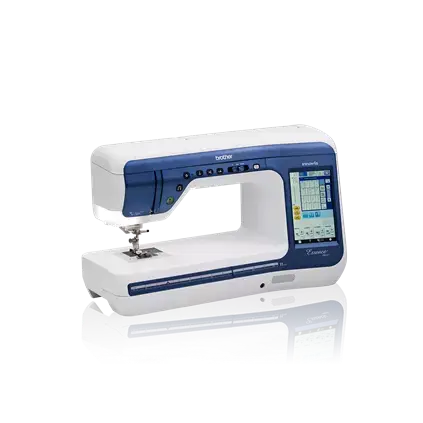

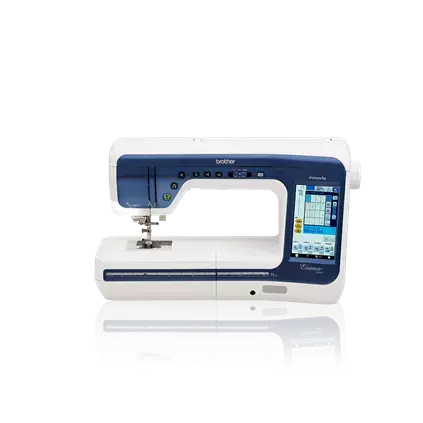

The Essence VM5200 packs lots of new advanced features into one sewing, quilting and embroidery machine for endless creative possibilities. With a larger than ever 8 x 12 embroidery area, 10 LED lighting that s up to 50% brighter than most Brother models and a#11.25 workspace that handles even your largest projects, this is the machine serious quilters will want to get their hands on. Its 7 LCD touchscreen display lets you view onscreen tutorials and control the machine with large, intuitive icons and with 745 sewing stitches, 318 embroidery designs, and 17 lettering fonts, it s a sure bet your creativity will explode with this whole new level of performance. Get ready to be impressed by the new capabilities and convenient functions offered by the new Essence from Brother.
| Projected Gridline Marker | No |
| Lockstitch Key | Yes |
| Stitch Width | 7mm |
| Back to Beginning Key | Yes |
| Free Arm | Yes |
| Built-in Sewing Lettering Fonts | 5 |
| Start/Stop Button | Yes |
| Presser Foot Levelling | Yes |
| Needle Position Key (Up/Down) | Yes |
| Bed Area (depth x width) inches | 7.7" x 15.6" |
| Stitch Length | 5mm |
| V-Sonic™ Pen for sewing | Feature not available |
| Max. Sewing Speed (stitches per minute) | 1,050 |
| Buttonhole Styles | 14 one-step |
| Automatic Presser Foot Lifter | Yes |
| Side Feeding | Yes |
| Presser Foot Pressure Adjustment | Yes |
| Feed Dog | 7 (longer version) |
| Speed Controller | Yes |
| Work Space (Height & Width) inches | 5.0" x 11.25" |
| Needle Stop Position | Yes |
| Reinforcement/Reverse Stitches | Yes |
| Twin Needle Setting Key | Yes |
| Projected LED Embroidery Pointer | No |
| Colour Sort | Yes |
| Space Reduction in Embroidery Alphabets | Yes |
| Curving Text on Screen Editing | Yes |
| Pattern Rotating | 1, 10 or 90 Degrees |
| My Custom Design™ Feature | Feature not available |
| Built-in Disney/Pixar® Character Designs | No |
| Thread Wiper | Yes |
| Built-in Border Function & Designs | Yes |
| Max. Embroidery Speed (stitches per minute) | 1,050 |
| InnovEye™ Technology | Feature not available |
| Snowman® Embroidery Positioning Marker | Feature not available |
| Built-in Frame Designs | 10 Shapes x 14 Stitch Patterns |
| Max. Embroidery Area (X x Y) | 8" x 12" |
| Drag & Drop Editing | Yes |
| InnovaChrome™ LED Thread Colour System | Feature not available |
| Cap Frame Capability | Feature not available |
| V-Sonic™ Pen Pal for embroidery | Feature not available |
| Colour Shuffling™ Function | Feature not available |
| On-Screen Automatic Density Adjustment (STB) | Yes |
| Programmable Monochrome Embroidery | Yes |
| Sewing Decorative Stitches w/Embroidery Arm | Yes |
| Automatic Feed Thread Cutting | Yes |
| Compatible with Brother Embroidery Software | Yes, available for additional purchase |
| Resume Function | Yes |
| Trial Position/Layout Function | Yes |
| Droplight™ Embroidery Positioning Marker | Available for additional purchase |
| Included Embroidery Hoops | 5" x 7" Frame,8" x 12" Frame |
| Appliqué Creator Function | Feature not available |
| Built-in Embroidery Lettering Fonts | 17 |
| Built-in Embroidery Designs (non-license) | 318 |
| Automatic Height Adjuster™ AHA® Feature | Yes |
| Drop Feed/Free Motion | Yes, manual |
| Built-in Quilting Stitches | Yes |
| MuVit™ Digital Dual Feed | Available for additional purchase |
| Knee Lifter | Included |
| Free Motion Quilting Foot | Included |
| Pivot Function | Yes |
| Other Included Accessories | 2 Embroidery Frame Sets,Bobbins,Cord Guide Bobbin Cover,Embroidery Bobbin Thread,Embroidery Needle Plate Cover,Foot Controller,Grid Sheet Set,Knee Lifter,Spool Caps,Stabilizer Material,Straight Stitch Needle Plate |
| Protective Case | Soft cover included |
| Standard Presser Feet Included with Machine | 12 |
| Included Accessory Feet | 1/4" quilting foot with guide,Blind stitch foot,Button sewing foot,Buttonhole foot,Free-motion echo quilting foot,Free-motion open toe quilting foot,Free-motion quilting foot,Monogramming foot,Overcasting stitch foot,Straight stitch foot,Zigzag foot,Zipper foot |
| Wide Table | Available for additional purchase |
| Foot Controller | Included |
| Warranty | 25-Year Limited Warranty |
| Projector | No |
| Media Type(s) | USB |
| Easy Bobbin Winding | Automatic bobbin winding system |
| Lighting | LED 10" Lighting |
| LCD Size (inches) | 3.6" x 6.0" |
| Adjustable Bobbin Winding Speed | Yes |
| Opening Screen | Yes |
| Needle Threading System | Yes |
| Quick Set™ Bobbin | Yes |
| Computer Connectivity with Update Capability | Yes |
| Software Upgrades | Yes |
| On-Screen Editing | Yes |
| Stitch Select | Touch Panel |
| Thread Sensor On/Off | Yes |
| Thread Sensor | Upper and bobbin |
| Automatic Thread Cutter | Yes |
